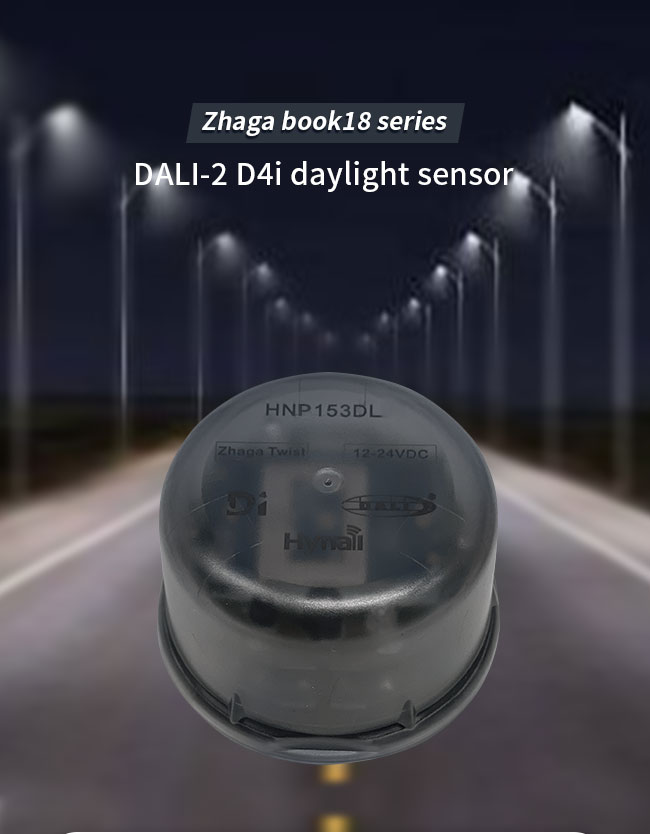

Model name: HNP153DL Zhaga book18 DALI-2 D4i daylight sensor
Quick detail of dali ip65 daylight sensor HNP153DL
1, DALI-2 system daylight sensor

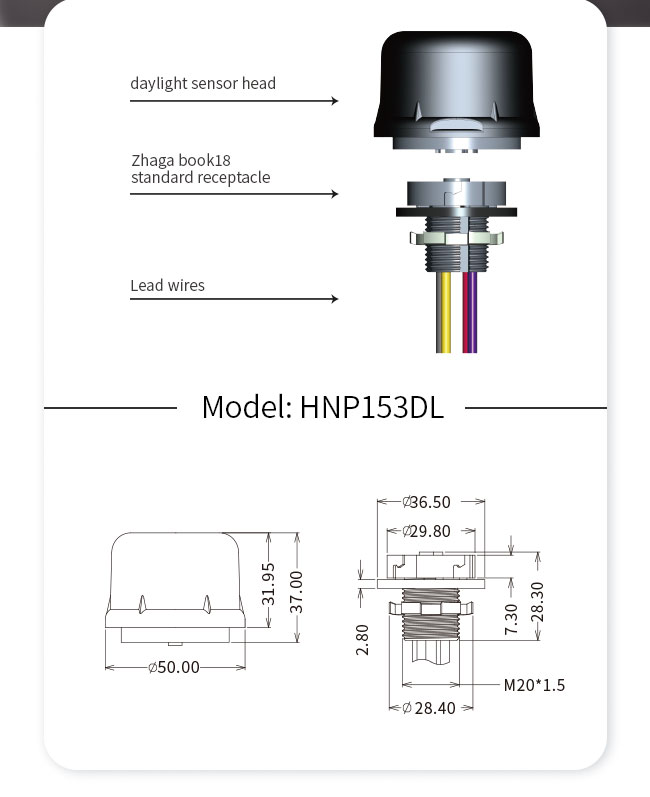

2, Zhaga book18 standard socket, 50mm in diameter for daylight sensor head
3, Self-contained “application controller”, remote control and DALI Bus setting two options
4, D4i approved, fully compatible with DALI Part 351 (Type A)
5, Defaulted 50lux as Lux-On threshold.
6, Intelligent photocell to measure and differentiate natural light from LED light
7, 5 years warranty
Description of microwave motion detector
HNS153DL uses Zhaga book18 receptacle, special design for street light, UFO, highbay light etc. outdoor lighting
12V-24V DC input, dali dimming output and daylight monitoring function, settings via both DALI Bus and remote control.
Specification of led motion sensor
| Small size | super compact size, ∅50mm |
| Input current: | ≥10mA |
| Setting: | IR14 and DALI Bus |
| Input voltage | 12-24V voltage |
| Output signal | DALI signal |
| Operation environment | -20°C~+70°C |
| Hynall Zhaga book18 series product list |
| Product | Daylight | Motion | Remark |
| On/off | Daylight monitoring | Daylight harvest |
| HNP152 | ✓ | | | | 0/10V high low output |
| HNP152V | ✓ | ✓ | | | 0-10V output |
| HNP152DH | | | ✓ | | 0-10V output |
| HNS151HB-A | | ✓ | | ✓ | 0-10V output |
| HNS151DHB | | | ✓ | ✓ | 0-10V output |
| HNS157PIR | | ✓ | | ✓ | 0-10V output |
| HNS158PIR | | | ✓ | ✓ | 0-10V output |
| HNS155DL | | | | ✓ | DALI-2 D4i |
| HNS153DL | | ✓ | | ✓ | DALI-2 D4i |
| HNS154DL | | | ✓ | ✓ | DALI-2 D4i |
| HNS153DL-C | | ✓ | | ✓ | DALI-2 D4i |
| HNS154DL-C | | | ✓ | ✓ | DALI-2 D4i |
| HNS155DLPIR | | | | ✓ | DALI-2 D4i |
| HNS157DLPIR | | ✓ | | ✓ | DALI-2 D4i |
| HNS158DLPIR | | | ✓ | ✓ | DALI-2 D4i |
| HNS157DLPIR-C | | ✓ | | ✓ | DALI-2 D4i |
| HNS158DLPIR-C | | | ✓ | ✓ | DALI-2 D4i |
| HNB156MW | | | ✓ | ✓ | MW+BLE |
| HNB156 | converter | BLE |
| HNB158PIR | | | ✓ | ✓ | PIR+BLE |
| HND150V/D | AC input, matching all of motion sensor head and converter of Zhaga book18 series |
FAQ:
Q1, How about your delivery time?
A: Generally, it will take 7 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q2, Why should you buy from us not from other suppliers?
A: hynall becomes a major leader of the motion sensor and sensor lighting manufacturer in China since its foundation in 2016.
Q3, Is this product waterproof can be used outdoor?
A: Yes, it is robust, IP65, can work in extreme environment.
