Tunable Microwave Movement Sensor HNS117 0-10v Dimming 25mA ETL

Name: Tunable Microwave Movement Sensor HNS117 010v Dimming 25mA ETL
Brand: Hynall
Price: 1 USD

Buy cheap Tunable Microwave Movement Sensor HNS117 0-10v Dimming 25mA ETL product

Brand Name : Hynall

Model Number : HNS117

Certification : RED, FCC, RoHS, ETL

Place of Origin : Shenzhen, China

MOQ : 300pcs

Price : To be negotiated

Payment Terms : T/T

Supply Ability : 30,000pcs / month

Delivery Time : 3~4 weeks for bulk orders

Packaging Details : Bubble bag + carton. (color box or blister package also available on request)

Input voltage : 24V DC, 12V DC for standard version

Input current : more than 25mA

Usage : Explosion-proof light etc.

Function : tri-level dimming and tunable white

CCT quick selection : Warm, White, Cool

Grouping Setting : DIP switch & remote control

Contact Now

Model name: HNS117 Tunable white microwave motion sensor switch

This model is a multiple functions motion sensor, and integrates0-10v dimming ( microwave motion sensor),
daylight monitoring ( daylight sensor) and tunable white (CCT adjustment by DIP switch setting) 3 in 1.

Advantage:
1. Tunable white function integrates microwave and daylight together. Low cost and more functions.
2. DIP switch and remote control two controls
3. Color temperature adjustment: Cool,White, Warm
4. Customized service: Yes

Product information:

Input voltage: 12 - 24V DC	Input current: ≥25mA
Detection range: max.12m in diameter.	Mounting height: max. 6m

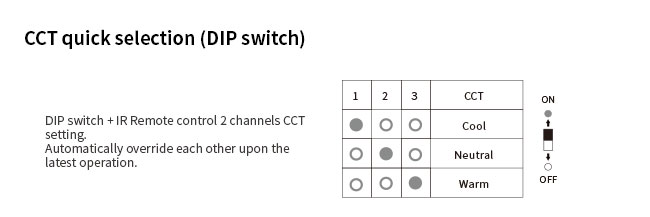

Easy access by DIP switch to shift between CC	cool,white and warm
Function:	Tunable white, daylight monitoring and 0-10v dimming

Tunable Microwave Movement Sensor HNS117 0-10v Dimming 25mA ETL

Size and Structure:

Tunable Microwave Movement Sensor HNS117 0-10v Dimming 25mA ETL

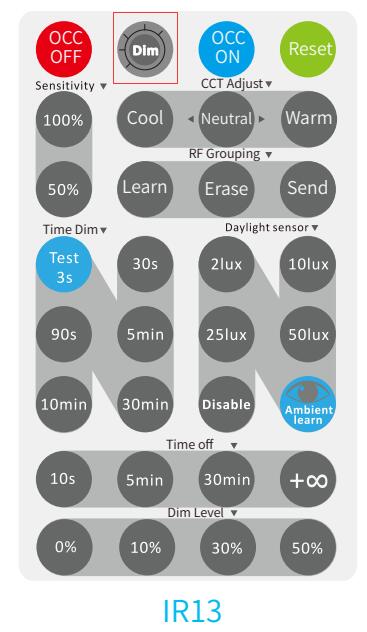

Settings:

Press “Dim” button to automatically dim up or down the
light brightness during hold-time from 10% to 100%. Another
press to lock it down when desired brightness is achieved.
After desired brightness is locked down, if user wants to
dim again reversely, just press the “Dim” button again and
then lock down the new brightness again.

Tunable Microwave Movement Sensor HNS117 0-10v Dimming 25mA ETL
