6m Mounting Microwave Motion Sensor Switch Dry Contact HNS201DC DIP

Name: 6m Mounting Microwave Motion Sensor Switch Dry Contact HNS201DC DIP
Brand: Hynall
Price: 1 USD

Buy cheap 6m Mounting Microwave Motion Sensor Switch Dry Contact HNS201DC DIP product

Brand Name : Hynall

Model Number : HNS201DC

Certification : RED, FCC, RoHS, ETL

Place of Origin : Shenzhen, China

MOQ : 300pcs

Price : To be negotiated

Payment Terms : T/T

Supply Ability : 30,000pcs / month

Delivery Time : 3~4 weeks for bulk orders

Packaging Details : Bubble bag + carton. (color box or blister package also available on request)

Input voltage : 12-24V DC input

Stand-by power : ＜0.5W

Control type : dry contact auto on/off

Model name : HNS201DC

Mounting height : 3-6m for ceiling mounting

Settting : DIP switch with 8 pin

Contact Now

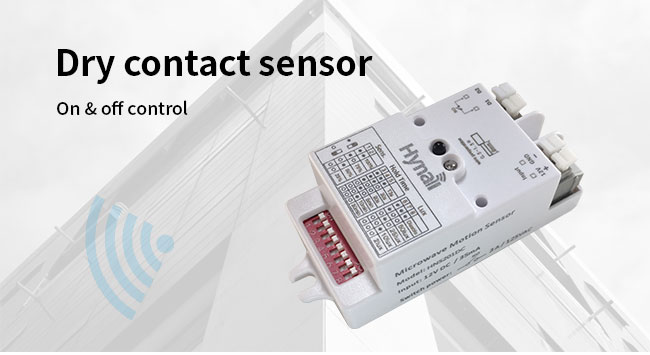

Model name: HNS201DC Dry contact microwave motion sensor switch

This model is a dry contact version with 3A signal relay, and simple on/off and lux off motion sensor switch.

Advantage:

1. If you would like to connect the load, and pls inform us, we have another version on requirement.

2. Stand-by power: <0.5w.
3. Dual - processor technology, real Lux-Off function for built-in application.

4. Customized service: Yes

Product information:

5.8GHz+/- 75Hz C-band microwave motion sensor.

Input: 12V DC / 35mA. Output signal: dry contact 3A 125VAC / 28V DC

Thanks for dual-processor technology, real Lux-Off function for built-in application.

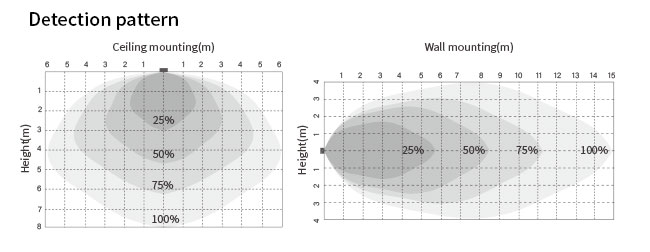

Detection range up to 12m in diameter. Mounting height: 3-6m.

Operation temperature: -20℃ ~ +70℃ . RoHS compliant.

IP rating: IP20. Warranty: 5 years

6m Mounting Microwave Motion Sensor Switch Dry Contact HNS201DC DIP

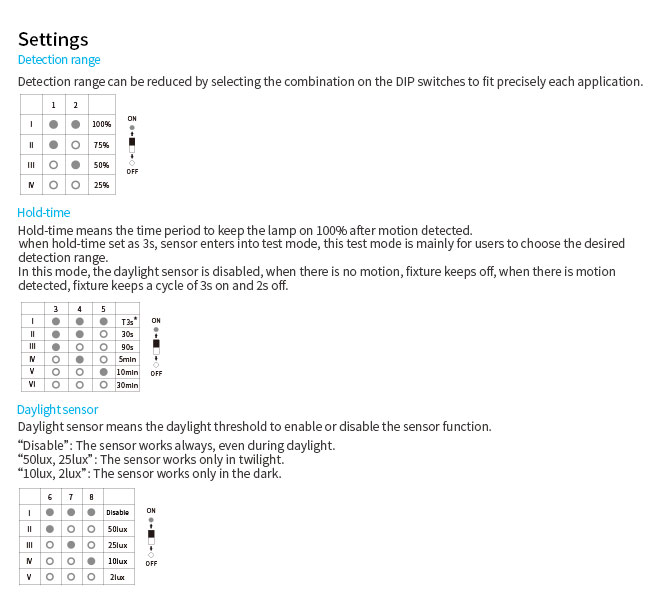

Parameters details:

Detection range : sensitivity of the motion sensor

Hold-time: the time period to keep the lamp on 100% after motion detected.

Daylight sensor: the daylight threshold to enable or disable the sensor function.

6m Mounting Microwave Motion Sensor Switch Dry Contact HNS201DC DIP
