RF Wireless Grouping Microwave Movement Sensor HNS106RF 24VDC

  • 1
  • 2
  • 3

Brand Name : Hynall

Model Number : HNS106RF

Certification : RED, FCC, RoHS, ETL

Place of Origin : Shenzhen, China

MOQ : 100pcs

Price : To be negotiated

Payment Terms : T/T

Supply Ability : 30,000pcs / month

Delivery Time : 3~4 weeks for bulk orders

Packaging Details : Bubble bag + carton. (color box or blister package also available on request)

Input voltage : 12V-24VDC

RF frequency : FSK 868MHz (EU) / 915MHz ( US)

RF transmission distance : Max. 50m in open area

Function : RF wireless grouping & dimming

Usage : Mine, Corridor, parking, garage, etc.

Product name : RF wireless microwave motion sensor

Contact Now

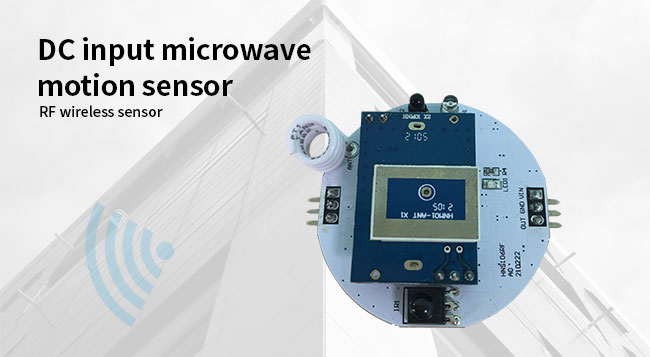

Model name: HNS106RF       12V DC RF Wireless grouping microwave sensor

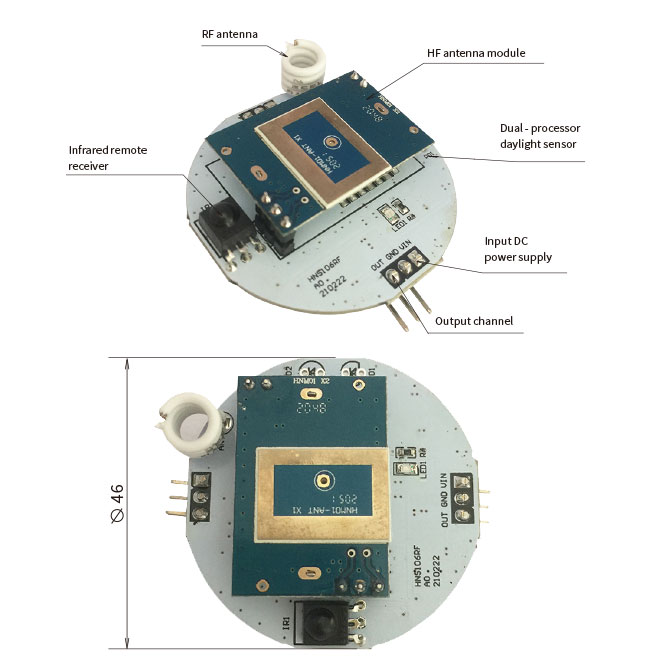

This model is a super small, only 46mm in diameter, and it is a small RF wireless motion sensor. It owns 0-10v dimming,

RF wireless grouping two functions, remote control setting, easy operation and intelligent grouping on requierement.



Advantage:

1.  Ideal for industrial lighting application. Some retrofit project /parking garage / staircase / corridor applications,

     easy installation, free of wiring.

2. Two channels, more fixtures can be connected.

3. Customized service: YES



Product information:

Input voltage: 12V~24V DC  Input current: ≥50mA
RF frequency: 868MHz/ 915MHz
RF transmission distance :

max. 50m in open area
Function:

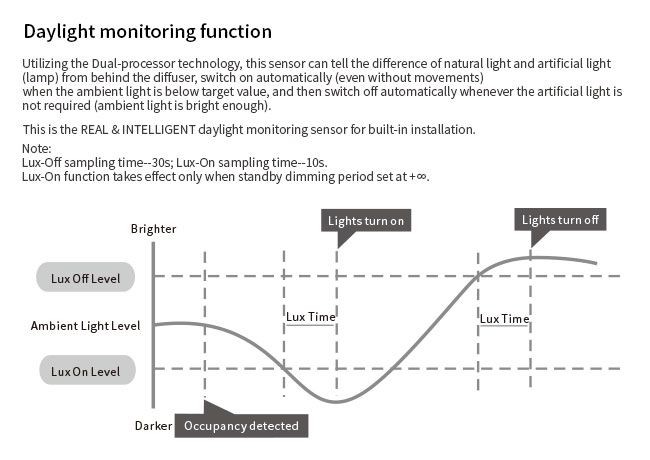

0-10v dimming, RF wireless grouping, daylight monitoring function 3 in 1

RF Wireless Grouping Microwave Movement Sensor HNS106RF 24VDC

RF Wireless Grouping Microwave Movement Sensor HNS106RF 24VDC

RF Wireless Grouping Microwave Movement Sensor HNS106RF 24VDC

RF Wireless Grouping Microwave Movement Sensor HNS106RF 24VDCRF Wireless Grouping Microwave Movement Sensor HNS106RF 24VDC

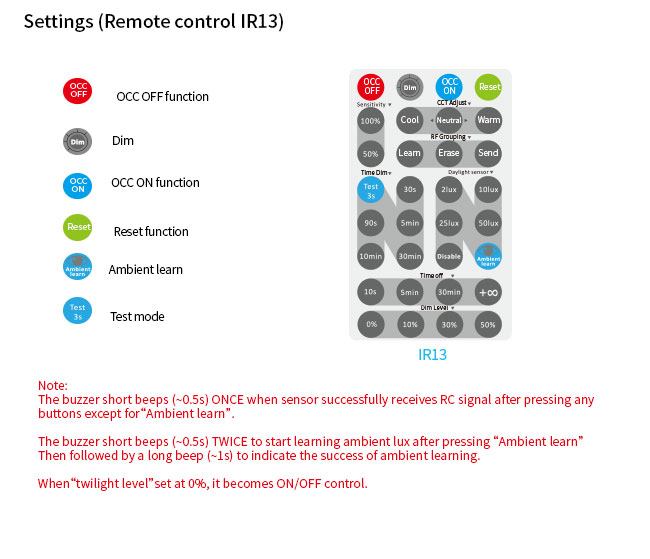

RF Grouping ( via remote control )



Step 1 Learn Short press “Learn” button, the LED indicator flickers three times and the lamp flickers once when the receiver unit successfully starting grouping mode. The LED indicator of the receiver unit flickers (every 2 seconds for 3min).This grouping mode will last for 3min, second short press on it will quit the grouping mode.
Step 2  Send Short press “Send” button to the commander unit, it will flicker quickly three times and the lamp flickers once to start a 5s RF signal sending, and then 2 times ( the LED
indicator flickers three times + the lamp flickers once ) to indicate finish of it.
After the RF signal, the LED indicator of the receiver unite will flicker three times and the lamp flicker once to indicate the success of grouping
Step 3 Erase

Long press “Erase” button for 5s to the sensor unit, the LED indicator will flicker three times and the lamp flickers once, to indicate the success of erasing.



Note:
1. If you want the sensor to work as both commander and receiver, you need to repeat the “learn” and “send” process again with the identification exchanged.
2. Each receiver can learn up to max. 32 commanders, late commanders beyond 32pcs will automatically substitute earlier ones.
