Model name: HNB131PIR 12V DC PIR & bluetooth Mesh & daylight harvest function
Product Information
Super compact, flexible to be integrated into any suitable fixtures.
Decentralized control (no single point of failure)
Operation temperature: -20 °C ~ + 70 °C.
0~10V dimming, task tuning (10-100%).
Autonomous sensor-based control
Individual/group addressing
OTA firmware upgrade.
RoHS compliant.
IP rating: IP20.
Parameters:
| Input current: | ≥20mA. |
| Bluetooth operation frequency | 2.4GHz - 2.483 GHz |
| Bluetooth transmission power: | 4dBm |
| Bluetooth transmission range: | 10-30m ( Typical indoor). |
| Bluetooth protocol: | Mesh |
| Input voltage: | 12V DC |
| Output: | 0~10V dimming, task tuning (10-100%). |
| Function: | Daylight harvesting function. |

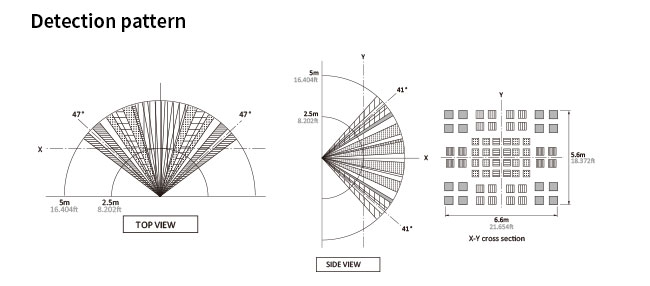

| Detection range: | Max. 5m. |
| Recommended mounting height: | 3m. |
Application of Motion Sensor
Motion Sensor is ideally suited to circulation areas, store rooms, toilets, kitchens, common stairs wells or corridors where there are are frequently people passing in an out of an area and the lighting often gets left on all day. Payback is the time it takes for an investment in energy conservation to repay its cost in energy savings. All our PIR and microwave switches have CE marking and have a 2 years warranty.
Technology
Integrated with PIR motion sensor 0-10v diming, Bluetooth Mesh , Daylight harvest function

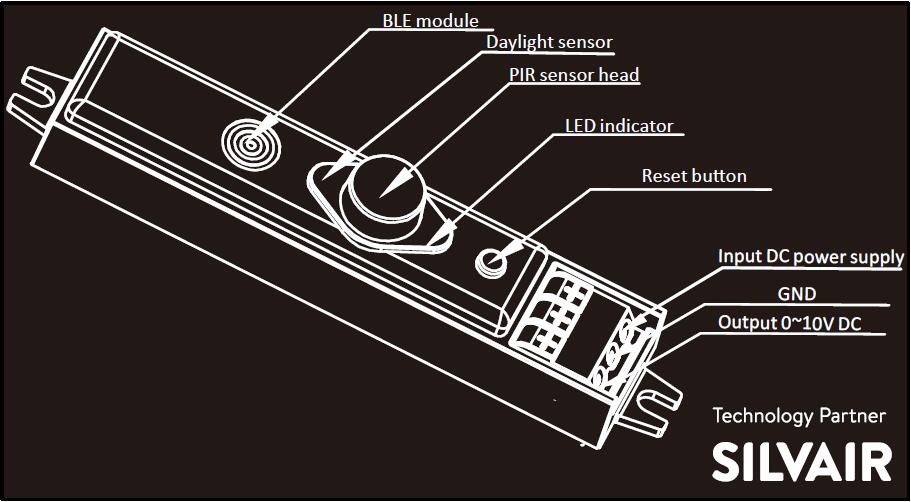

Product Structure
Size:
Service:
Fast-responding and flexible for all kinds tailor made products. Customized service on requirement
FAQ:
Q1. What is the biggest difference between your battery and other suppliers:
A: Safest with longer lifespan.
Q2. How about your Motion Sensor delivery time?
A: 1-25 workdays after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q3: How about your warranty?
A: 3years warranty
Q4. Is this Motion Sensor safe?
A: Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no explosion at any circumstance; price to ensure our customers benefit ;
Product Tags:
|
|
Daylight Harvesting Bluetooth PIR Motion Sensor Decentralized Control For LED Panel Images
|
