HNT205 Microwave Motion Sensor Switch IP20 Trailing Edge Dimmable Detached Head

Name: HNT205 Microwave Motion Sensor Switch IP20 Trailing Edge Dimmable Detached Head
Brand: Hynall
Price: 1 USD

Brand Name : Hynall

Model Number : HNT205

Certification : CE, RED, FCC, RoHS

Place of Origin : Shenzhen, China

MOQ : 300pcs

Price : To be negotiated

Payment Terms : T/T

Supply Ability : 20,000pcs / month

Delivery Time : 3~4 weeks for bulk orders

Packaging Details : Bubble bag + carton. (color box or blister package also available on request)

Input voltage : 220~240V AC/ 90-120V AC

Protections : Over load protection and Over-heat protecion

Usage : trailing edge driver

Model : HNT205

Function : tri-level dimming and daylight monitoring control

Size : 102*45*26.5mm

Contact Now

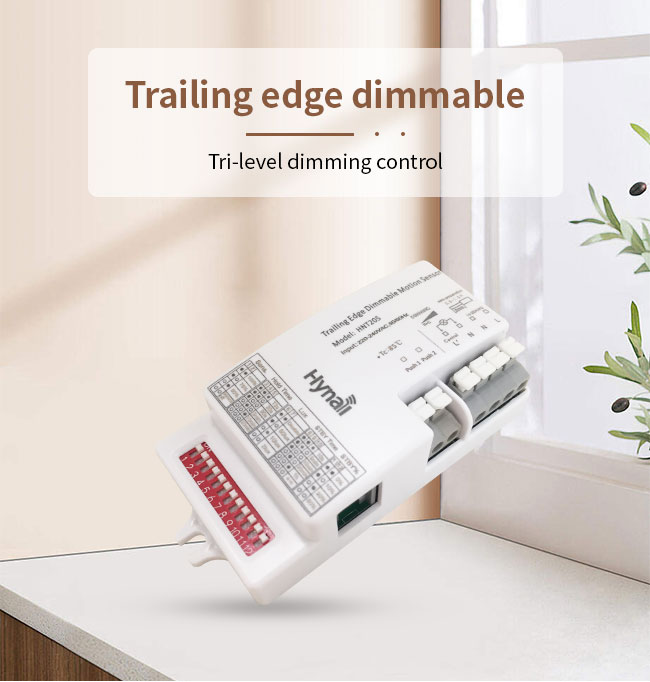

Model name: HNT205 Trailing edge dimmable motion sensor

This model is a detached microwave motion sensor, and special trailing edge dimmable switch. Particularly designed for retrofit purpose on trailing edge technology based fixtures, AC LED lamps, AC halogen lamps, etc. Convert / upgrade easily existing fixtures into intelligent motion sensor control without extra change, at the same time, Push-Dim function acquired.

Advantage:

1. Trailing edge dimmable microwave motion sensor

2. This sensor supports Push-Dim function for end-users to switch on/off, or adjust the target lux level by

ordinary push switch. In this waymake the product more user-friendly and flexible.

3. Over-heat protection:
Automatically output reduction against over-heat, 80%-50%-10%-OFF.

4. Over-load protection:
Automatically shut off when load ≥300W.

5. Customized service: YES

Product information:

1.	Input voltage:	220〜240V / 90-120V
2.	Rated load:	150W (capacitive load) / 200W (resistive)
3.	Stand-by power:	<1w
4.	Over-heat protection:	80%-50%-10%-OFF

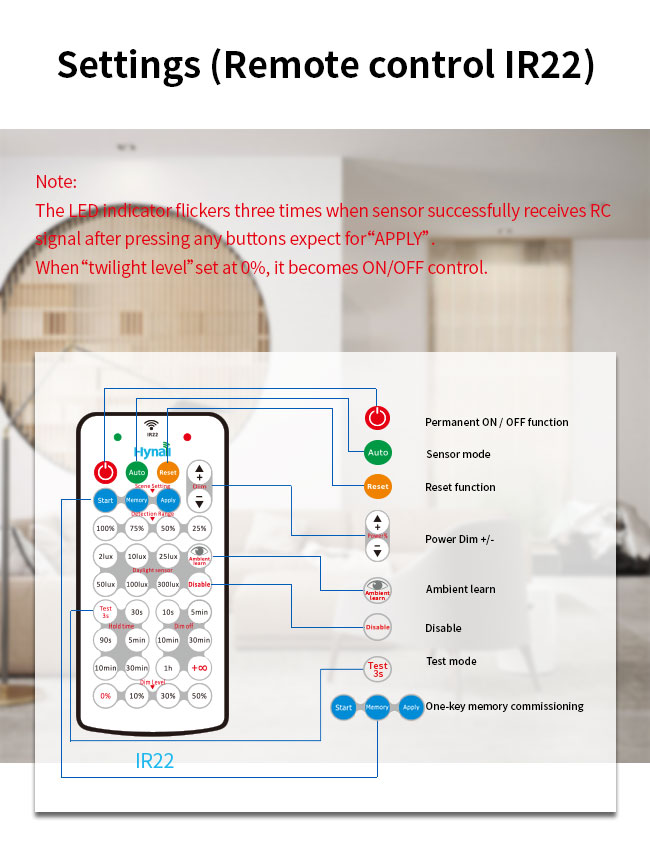

5.	DIP switch + IR Remote control	Automatically override each other upon the latest operation
6.	Detection range:	Up to 12m in diameter
7.	Mounting height:	3-6m
8.	Operation temperature:	-20℃~ + 70℃
9.	IP rating:	IP20

HNT205 Microwave Motion Sensor Switch IP20 Trailing Edge Dimmable Detached Head
