ANT03 Security Motion Sensor Digital Antenna Head Perfect For Intelligent System

Name: ANT03 Security Motion Sensor Digital Antenna Head Perfect For Intelligent System
Brand: hynall
Price: 1 USD

Buy cheap ANT03 Security Motion Sensor Digital Antenna Head Perfect For Intelligent System product

Brand Name : hynall

Model Number : ANT03

Certification : CE

Place of Origin : shenzhen

MOQ : 1000

Price : To be negotiated

Payment Terms : T/T

Delivery Time : 4 weeks for bulk orders

Packaging Details : Bubble bag + carton. (color box or blister package also available on request)

Output : security digital Sensor

Theory : microwave radar technology

Application : security detected application

Type : Module

Input voltage : DC5v (customized by ac110-220v)

Warranty : 5 years

Contact Now

Security sensor digital intelligent microwave antenna head ANT03, perfect for intelligent system and produts

Customized products and services for you all the time

Quick Detail:

1. 5V DC input voltage

2. 15mA operation current

3. 5 sensitivity level for your options

4. Operation temperature: -20℃-+75℃

5. Warming-up time: 20s

6. Digital output: 5v high low voltage or PWM

Features:

1. Detection range: up to 12m in diameter

2. Size: 32.5*22.5*12mm

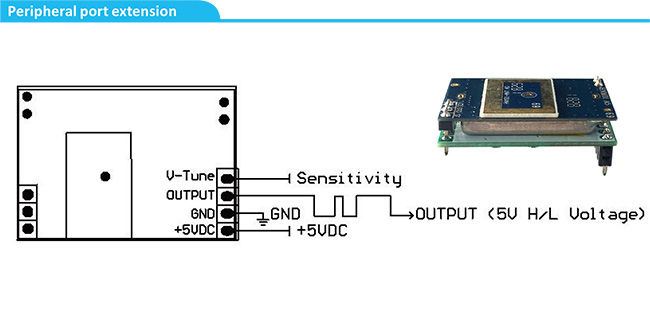

Desciption	V-Tune PIN Voltage	Sensitivity level
Low sensitivity	0.00v-1.249v	25%
Medium sensitivity	1.25v-2.49v	50%
High sensitivity	2.50v-3.74v	75%
Test sensitivity	3.75v-5.00v	100%

ANT03 Security Motion Sensor Digital Antenna Head Perfect For Intelligent System
