12VDC Input IP20 Led Mit Sensor 8 Pin DIP Switch HNS105 For Solar System

Name: 12VDC Input IP20 Led Mit Sensor 8 Pin DIP Switch HNS105 For Solar System
Brand: Hynall
Price: 1 USD

Buy cheap 12VDC Input IP20 Led Mit Sensor 8 Pin DIP Switch HNS105 For Solar System product

Brand Name : Hynall

Model Number : HNS105

Certification : RED, FCC, RoHS

Place of Origin : Shenzhen, China

MOQ : 300pcs

Price : To be negotiated

Payment Terms : T/T

Supply Ability : 30,000pcs / month

Delivery Time : 3~4 weeks for bulk orders

Packaging Details : Bubble bag + carton. (color box or blister package also available on request)

Input voltage : 8~30VDC

Operation temperature : -20℃ ~ +70℃

IP rating : IP20

Name : intelligent mirror sensor

Product name : HNS105

Warranty : 5 years

Contact Now

Intelligent mirror sensor 12V microwave sensor ,Sensor - DIM Solution For Solar System or non-dimmable constant voltage LED driver

This sensor is specially designed for:

Perfect for Intelligent mirror

Solar system appliaction

12V voltage halogen lamp

Standard fixture with non-dimmable constant voltage driver

Quick Detail:

1. 8~30VDC input,output to LEDs
2. Dual-processor daylight technology, for real built-in application

3. Dimming function for your options

Features:

5.8GHz C-band microwave

1~10V dimming control

Flexible to be integrated into any suitable fixtures

Real daylight monitoring for built-in by dual-processor technology

Setting by 8 pin DIP switch for your options

-20℃ ~ + 70℃ for operation temperature

3~6m for mounting height

Max. 12m in diameter for detection range

1.5A max. (e.g. max.18w@12v; max.36w@24v) for rated output

8~30V DC for input voltage

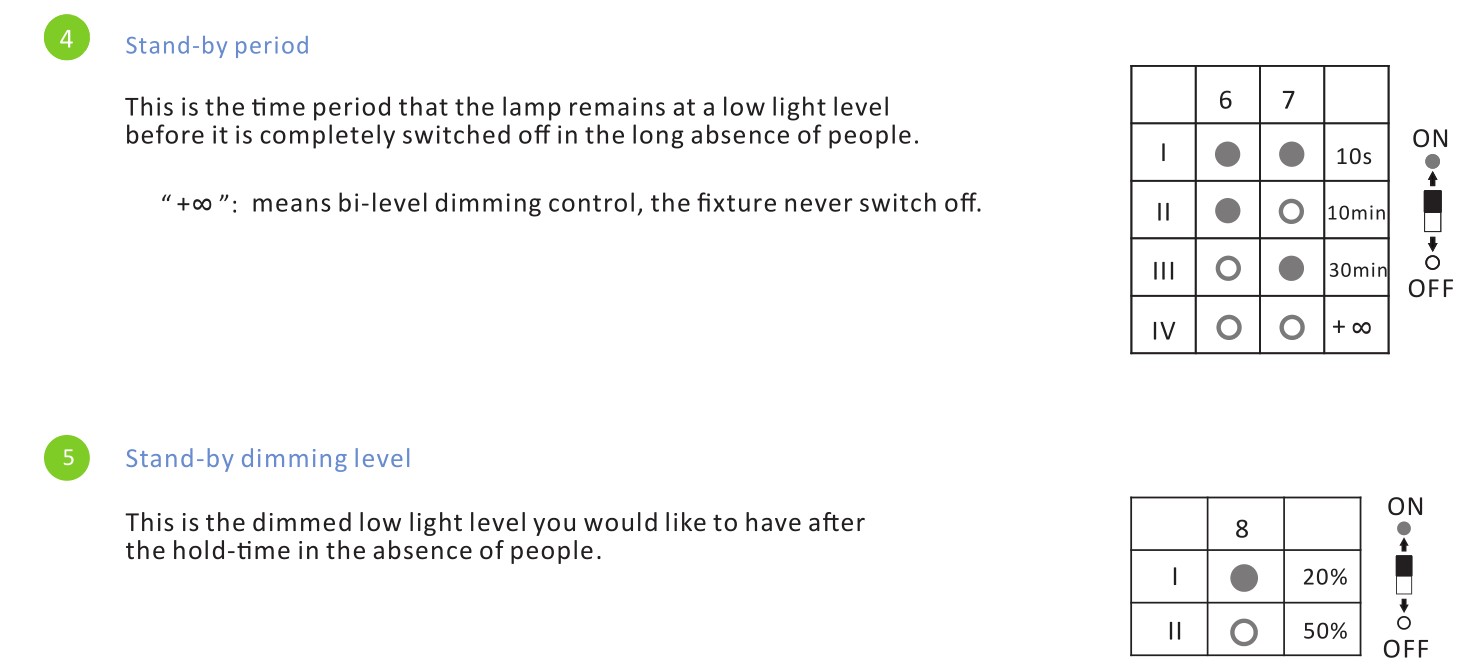

Settings:

100%, 50% detection range for your options

T3s, 1min,5min, 20min hold-time for your options

Disable, 50lux, 10lux, 2lux daylight sensor for your options

12VDC Input IP20 Led Mit Sensor 8 Pin DIP Switch HNS105 For Solar System

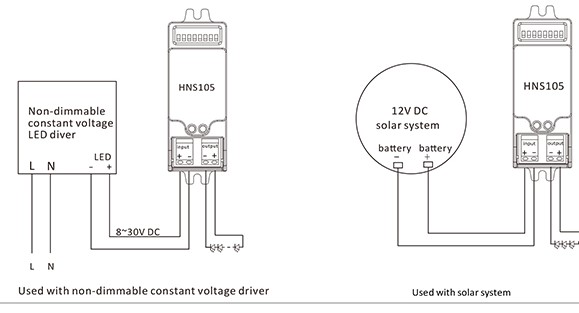

Wiring diagram

12VDC Input IP20 Led Mit Sensor 8 Pin DIP Switch HNS105 For Solar System
