Standard Zhaga Book 18 Tri Level Dimming Motion Sensor High Bay Version

Name: Standard Zhaga Book 18 Tri Level Dimming Motion Sensor High Bay Version
Brand: hyanll
Price: 1 USD

Buy cheap Standard Zhaga Book 18 Tri Level Dimming Motion Sensor High Bay Version product

Brand Name : hyanll

Model Number : HNS151HB

Place of Origin : China

MOQ : 50

Payment Terms : T/T

Supply Ability : 20000 per month

Delivery Time : 3~4 weeks

Packaging Details : 45*30*23cm

Usage : lighting control

IP rating : IP65

Name : Zhaga book 8 standard motion sensor

Output : 0~10V / PWM available

Size : 50mm in diameter

Contact Now

Tri Level Dimming IP65 PWM Remote Control 12V Microwave Sensor

Standard Zhaga book 18 tri-level dimming motion sensor high bay version HNS151HB

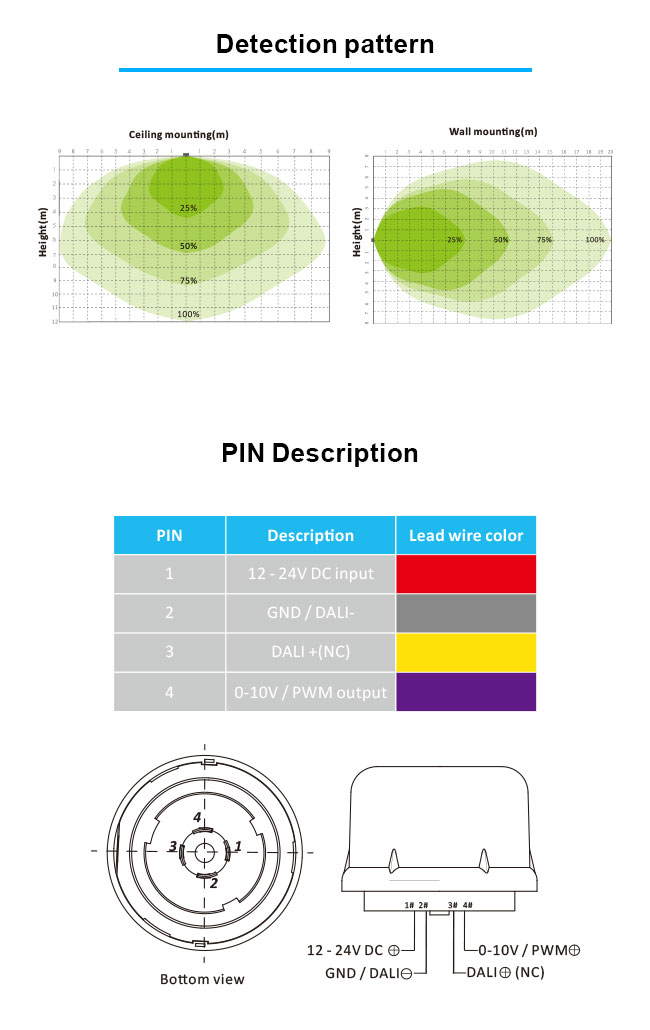

Detection range up to max. 16~18m in diameter.

Mounting height: max.12m

IR remote commissioning, easy setting and user friendly.

Specially designed for UFO highbay fixtures, wallpacks, shoeboxes etc.
If the lighting fixture manufacturers / contactors do not want the sensor function, they just need to easily
remove the sensor head and put the cover cap on.
Input current: ≥30mA.

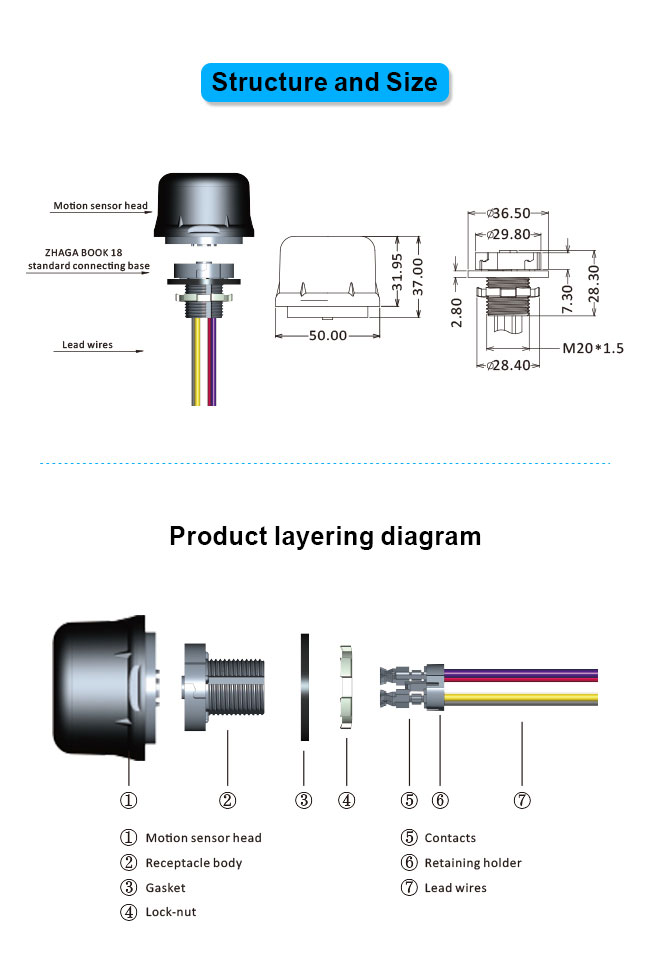

Super compact size(50mm in diameter only) , easy and small enough to be used built-in.
Operation temperature: -20 C ~ + 70 C.
RoHS compliant.
IP rating: IP65
Standard Zhaga Book 18 Tri Level Dimming Motion Sensor High Bay Version

Permanent ON/OFF function

Press “ON/OFF” button, fixture goes to permanent on or permanent off mode, sensor is disabled.
press “Auto”, “Reset” or “Ambient learn” to quit this mode.

Dim
Press “Dim” btton to automatically dim up or down the
light brightness during hold-time from 10% to 100%. Another press to lock it down when desired brightness is achieved. After desired brightness is locked down, if user wants to dim again reversely, just press the “Dim” button again and then lock down the new brightness again.

Sensor mode
Press “Auto” button, the sensor starts to work and all
settings remain the same as the latest status before the
light was switched on/off.
Reset
Press “Reset” button, all settings go back to factory default settings.
Factory default settings--
Sensitivity=100% / Daylight sensor=disable
Hold time=90s/ Twilight time=5min
Twilight level=10%

Ambient Ambient learn
Press “Ambient learn” button, the latest surrounding lux
value overwrites previous lux value learned, and set as the daylight threshold. This feature enables the fixture to function well in any real application circumstance.

“Test mode”is for testing purpose only, for users to check the functionality and choose the desired
detection range. The sensor goes to test mode automatically after pressing this button.
Test mode defaulted settings--
Daylight sensor=disable
Hold time=3s
Twilight time=N/A
Twilight level=N/A

Standard Zhaga Book 18 Tri Level Dimming Motion Sensor High Bay Version

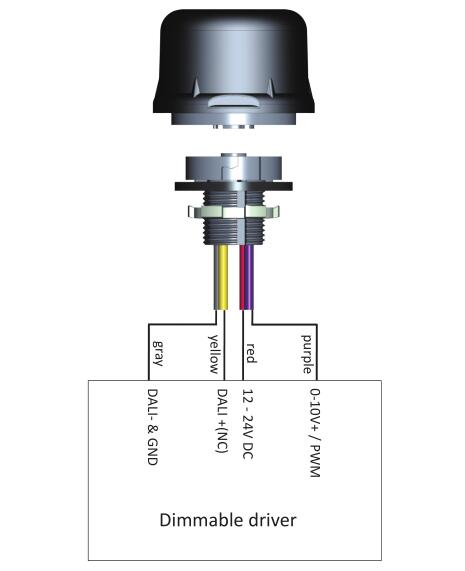

Wiring diagram:

Standard Zhaga Book 18 Tri Level Dimming Motion Sensor High Bay Version
